Waveshare ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency

ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, ESP32 With Display

ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, With Colorful RGB LED, ESP32 With Display

ESP32-C6-LCD-1.47

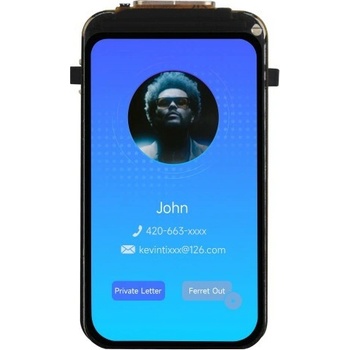

Integrates LCD display, onboard TF card slot and multiple peripheral interfaces   * for reference only, please refer to the actual display effect

Features

ESP32-C6-LCD-1.47 is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications.

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
• Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
• Onboard 1.47inch LCD display, 172×320 resolution, 262K color
• Adapting multiple IO interfaces, integrates full-speed USB port
• Onboard TF card slot for external TF card storage of pictures or files
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
• Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect

ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

WIFI 6 and BLE 5 support

ESP32-C6 integrates 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO header

What's On Board

• ESP32-C6FH4
• ME6217C33M5G

Low dropout regulator, 800mA output (Max.) - TF card slot

• Onboard ceramic antenna
• BOOT button
• RESET button

  outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-C6-LCD-1.47

Package Content

Weight: 0.008 kg

• ESP32-C6-LCD-1.47 x1
• Black header ×1
