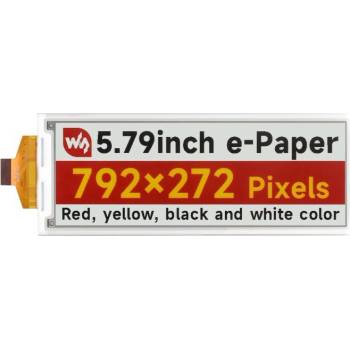

Waveshare 5.79inch e-Paper display (G), e-ink display, 792x272, Red/Yellow/Black/White, Without driver board

5.79inch E-Paper Display (G), E-Ink Display, 792x272, Red/Yellow/Black/White, SPI Interface 5.79″ E-Paper (G)

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the driver board is optional, please refer to the Package Content for detailed part list

• Size5.79″
• Resolution792×272
• Viewing Angle>170°
• Display ColorRed/Yellow/Black/White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Version Options 5.79inch e-Paper (G) raw display, without driver board   5.79inch e-Paper Module (G) with driver board

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)
• Optional for e-Paper driver board:

Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc. - Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

OPERATING VOLTAGE

Raw display: 3.3V

DISPLAY COLOR

Red/Yellow/Black/White with driver board: 3.3V/5V

INTERFACE 3-wire SPI, 4-wire SPI

GREY SCALE 2

OUTLINE DIMENSIONS

Raw display: 150.92 × 56.94 × 1.00mm

FULL REFRESH TIME 21s with driver board: 152.50 × 58.50mm

DISPLAY SIZE 139.00 × 47.74mm

REFRESH POWER
